Flexible Automatic Palletizing Systems Gantry Palletizer Customizable Layer Patterns

  • 1
  • 2
  • 3

Brand Name : YH PIONEER

Place of Origin : China

MOQ : 1 Sets

Price : To be negotiated

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 Sets/month

Delivery Time : To be negotiated

Packaging Details : Wooden box

Pallet height : ≤2400mm(with pallet)

Bags per layer : 3~8(depending on bag size)

Palletizing form : 2+3/3+2，3+3，2+4/4+2，2+2+3/3+2+2, 3+3+2/2+3+3(depending on bag size)

Bag weight : 10~50 kg/bag

Pallet material : Wooden pallet, engineering plastic pallet, iron pallet, corrugated paper pallet

Fork form : Two-sided or four-sided fork

Pallet size : Length 800~1400mm, width 800~1200mm, height 80mm~200mm

Speed : 800 ~ 1200 bags / hour (all kinds of pockets and palletizing form)/1200~1600 bags / hour (no less than 5 bags per layer for all kinds of pockets)/1800~2000 bags / hour (not less than 5 bags per layer of conventional valve pocket and building material valve

Contact Now

Flexible Gantry Palletizer with Customizable Layer Patterns for Various Bag Sizes

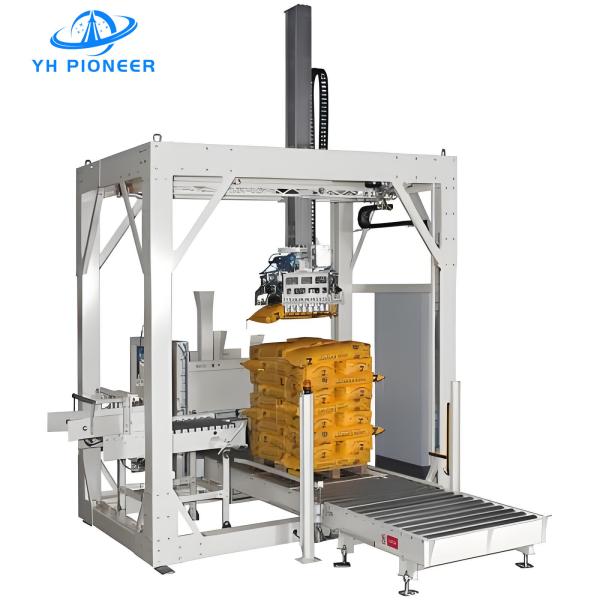

Gantry Palletizer

We provide professional Gantry Palletizer, support the conveying of various types of bottles, and provide a variety of conveying types.
The Gantry Palletizer is a state-of-the-art automation system designed for the efficient and precise palletizing of various products. This robust machine is ideal for industries that require high-speed palletizing of items such as cartons, trays, shrink packs, and more. Its modular design allows for seamless integration into existing production lines, ensuring a high degree of flexibility and reliability in handling different pack formats

PRODUCT PARAMENTERS

Pallet height
≤2400mm(with pallet)
Bags per layer
3~8(depending on bag size)
Palletizing form
2+3/3+2,3+3,2+4/4+2,2+2+3/3+2+2, 3+3+2/2+3+3(depending on bag size)
Bag weight
10~50 kg/bag
Pallet material
Wooden pallet, engineering plastic pallet, iron pallet, corrugated paper pallet
Fork form
Two-sided or four-sided fork
Pallet size
Length 800~1400mm, width 800~1200mm, height 80mm~200mm
Speed
800 ~ 1200 bags / hour (all kinds of pockets and palletizing form)
1200~1600 bags / hour (no less than 5 bags per layer for all kinds of pockets)
1800~2000 bags / hour (not less than 5 bags per layer of conventional valve pocket and building material valve pocket)

*It can be modified according to customer requirements.


Please click the form below to download and fill it out to inquire about detailed specifications and parameter options.

PRODUCT ADVANTAGE

*The Gantry Palletizer is designed for high-speed operation, with capabilities ranging from 600 b/h to meet the demands of high-volume production.
*It features a strong and compact structure, ensuring stability and precision during the palletizing process.
*The system is controlled by a PLC, allowing for easy programming and operation, with the ability to handle a wide range of palletizing schemes.
*The gantry design allows for a small footprint, making it suitable for areas where space is a constraint.
*The palletizer is equipped with safety devices in accordance with current regulations, ensuring a safe working environment.

PRODUCT SPECIFICATIONS
Pallet Height: Capable of accommodating pallets up to 2400mm in height, including the pallet itself.
Bags per Layer: Designed to handle 3 to 8 layers, depending on the size of the bag.
Palletizing Form: Offers various configurations to suit different bag sizes and palletizing requirements.
Bag Weight: Engineered to support bags weighing between 10 to 50 kg each.
Pallet Material: Compatible with a range of materials including wooden, plastic, and metal pallets.
Fork Form: Available in two-sided or four-sided fork options for easy handling with forklifts.
Pallet Size: Customizable dimensions to fit the needs of the production line.
Power Supply: Operates on a standard 380V, 50Hz power supply.
Motor Power: Equipped with powerful motors for reliable performance.

PRODUCT MATERIALS

Frame: Constructed with heavy-duty steel for durability and structural integrity.
Gripper System: Designed for integration with different gripping devices to handle various types of products.
Axles: High-quality axles ensure smooth and precise movement along the Cartesian coordinates.

PRODUCT APPLICATION
*The Gantry Palletizer is widely used in industries such as food and beverage, pharmaceuticals, chemicals, and manufacturing for the automated palletizing of products.
*It is particularly effective in environments where high-speed and accurate placement of products on pallets are required, ensuring efficient use of space and optimal load stability.
*The palletizer is suitable for a variety of packaging materials, including but not limited to cardboard cases, plastic containers, and shrink-wrapped products.

SERVIC and SUPPORT
We provide comprehensive maintenance services to ensure the Gantry Palletizer remains in optimal condition. Our dedicated support team is available to assist with any technical queries or service needs.

Flexible Automatic Palletizing Systems Gantry Palletizer Customizable Layer Patterns
Flexible Automatic Palletizing Systems Gantry Palletizer Customizable Layer Patterns

ORDER PROCESS

Flexible Automatic Palletizing Systems Gantry Palletizer Customizable Layer Patterns
